Tech specs

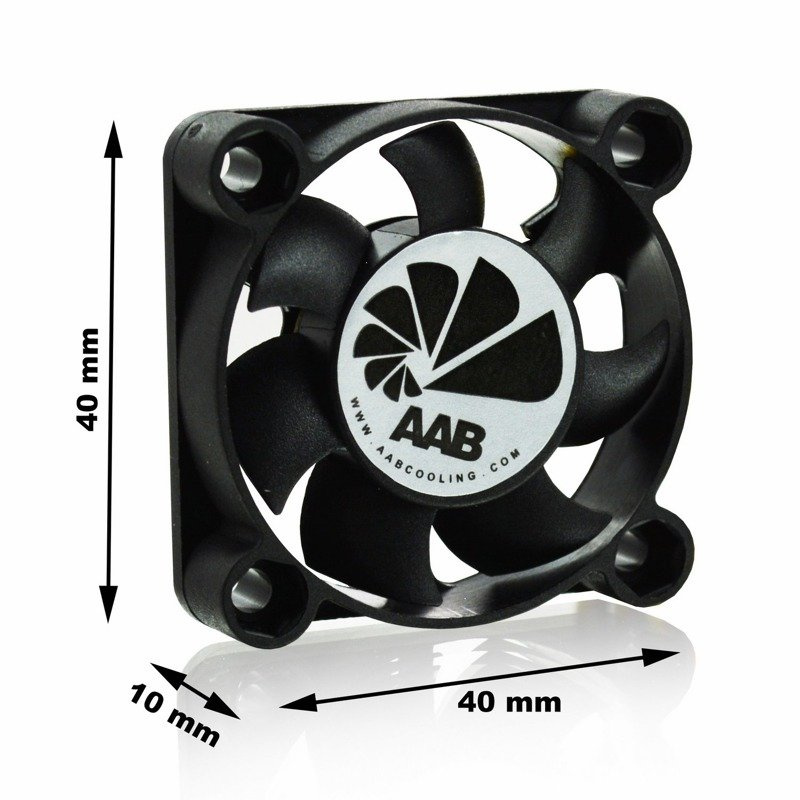

| Total dimensions: | 40 x 40 x 10 mm |
| Weight: | 18 g |
| Material: | Plastic |
| Power Supply: | 8,5~12 VDC/ 0,03A~0,05A |
| Power Connector: | 3 Pin |
| Speed: | 3200 rpm ±10% |
| Airflow: | 5,8 m3/h |
| Noise: | 20 dB(A) |
| Bearings: | Slides |
| Thermal resistance: | 0,29 C/W |
| Mounting hole spacing: | 32,5 x 32,5 mm |
| Cable length:: | 30cm |

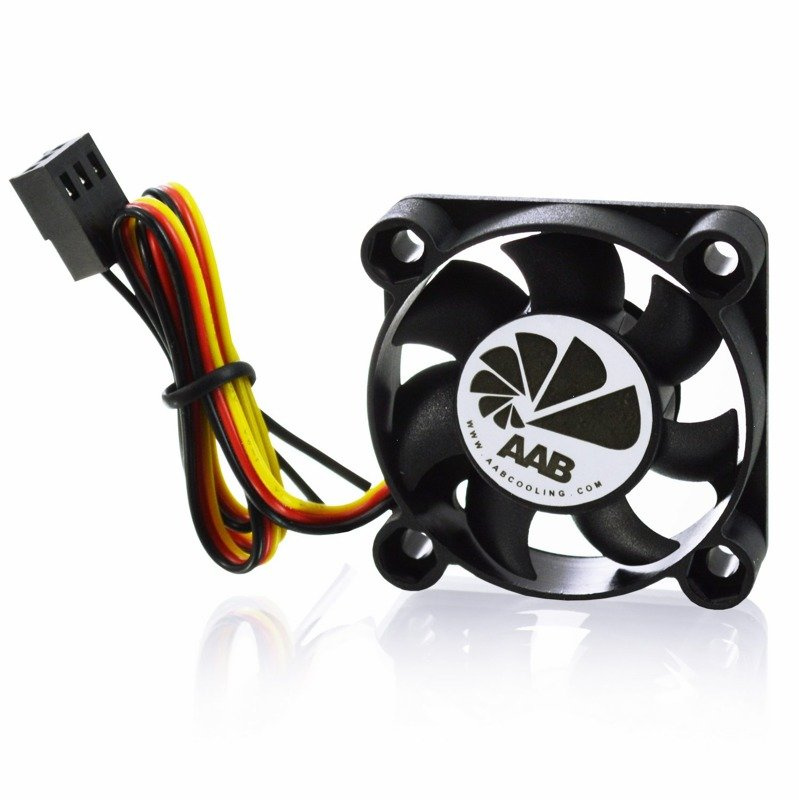

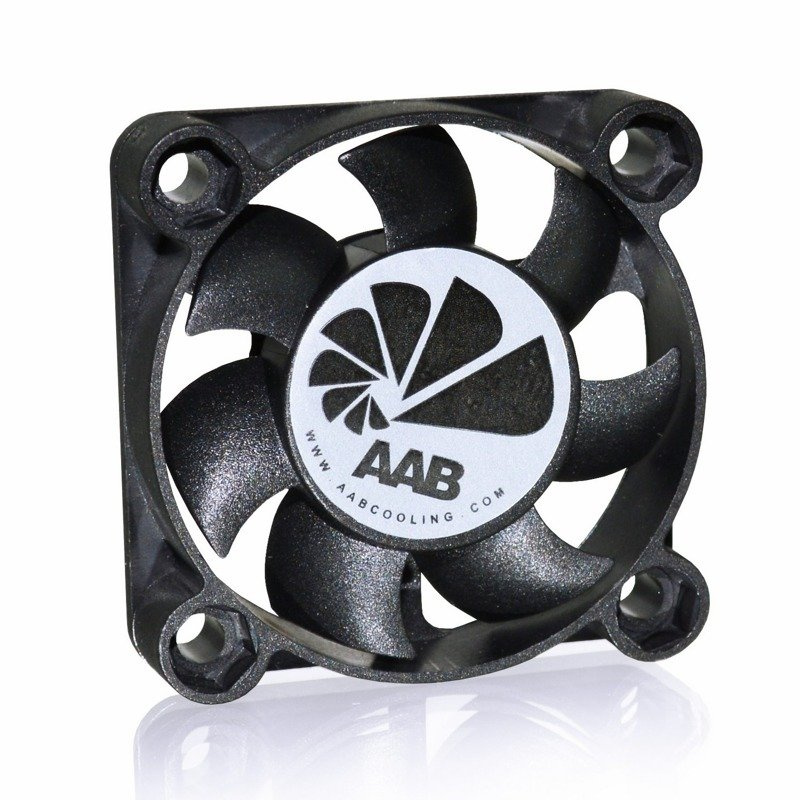

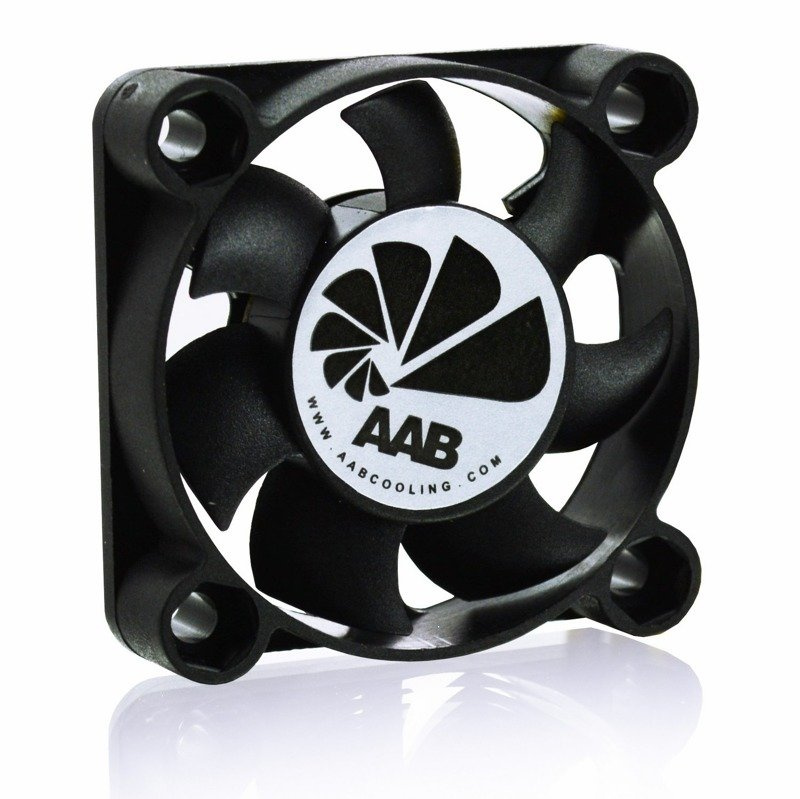

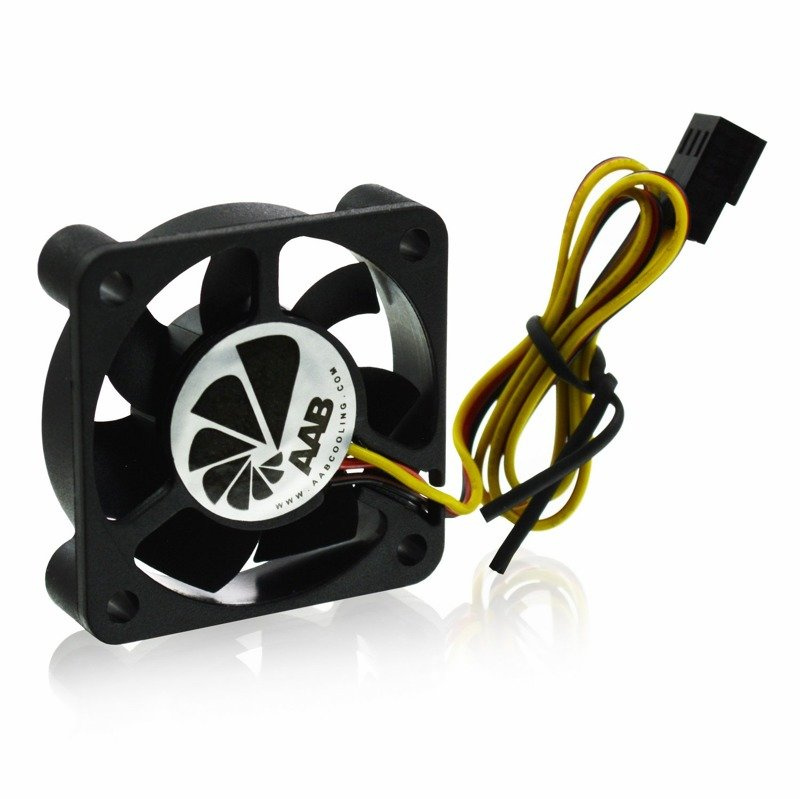

AABCOOLING Fan 4 is an economical fan from AAB. The fan runs at a constant 3200 ± 10% rpm. The noise level generated by the blades and the bearing is 20 dB(A). Due to the installation of the cheapest and short-life plain bearings in this fan, this product warranty is only 3 months.
- Economy series
- Efficient
- 3 Pin Plug
- Sleeve Bearings
- Warranty 3 months
Typical applications:
Mounting the fan in the cover or power supply: The AABCOOLING Fan 4 is mounted on four screws, fixed to the standard fans in the power supply, allowing quick and easy replacement of the loud fan.
Installation methods in the power supply:
- Plug the fan plug into the 3Pin connector
- It is safer to solder the power cord to the power supply (voltage control from the power supply). Cut off the 3 pin plug and connect the fan directly to the power supply (no return possible).
- disconnecting the 3 pin plug and connecting the fan directly to the power supply (no return possible) - The black cable is ground, the red is responsible for +, yellow is the transmission of the speed, no connection unables the BIOS from reading speed.
Mounting the fan in the cover or power supply: The AABCOOLING Fan 4 is mounted on four screws, fixed to the standard fans in the power supply, allowing quick and easy replacement of the loud fan.
Installation methods in the power supply:
- Plug the fan plug into the 3Pin connector
- It is safer to solder the power cord to the power supply (voltage control from the power supply). Cut off the 3 pin plug and connect the fan directly to the power supply (no return possible).
- disconnecting the 3 pin plug and connecting the fan directly to the power supply (no return possible) - The black cable is ground, the red is responsible for +, yellow is the transmission of the speed, no connection unables the BIOS from reading speed.
Included:
- 1 x AABCOOLING Fan 4
