Total dimensions: | 48 x 61,5 x 13,5 mm |
Weight: | 18 g |
Material: | Plastic ,
aluminium |
Fans dimension: | 36.5 x 36.5 x 10 mm |
Power Supply: | 5-12V DC 0,02-0,06A |

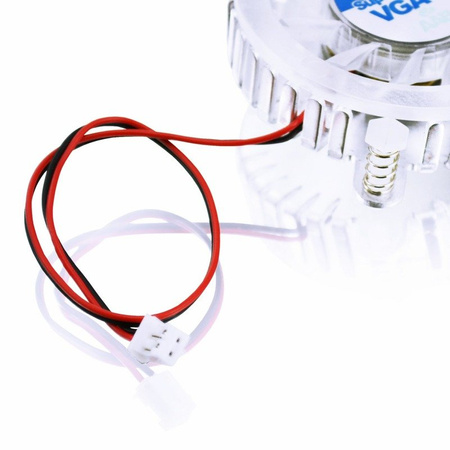

Power Connector: | 2 Pin mini |
Speed: | 5000 rpm +/-10% |
Noise: | 20 dB(A) |
Bearings: | FDB(Fluid Dynamic Bearing) - Hydraulic |
Thermal resistance: | 0,29 C/W |
Cable length:: | 16 cm |

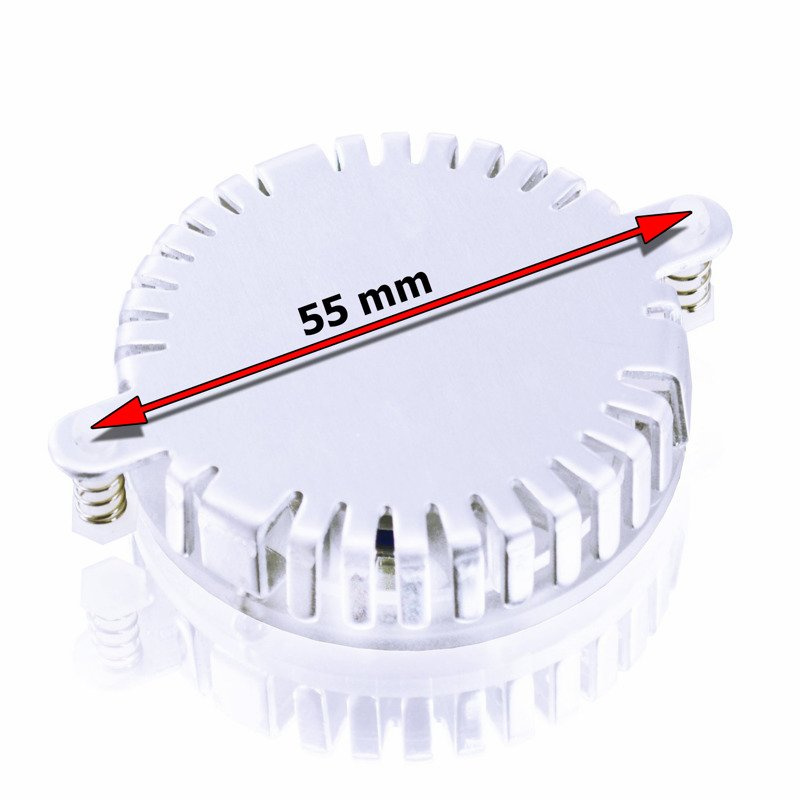

Mounting hole spacing: | 55 x 55 mm |

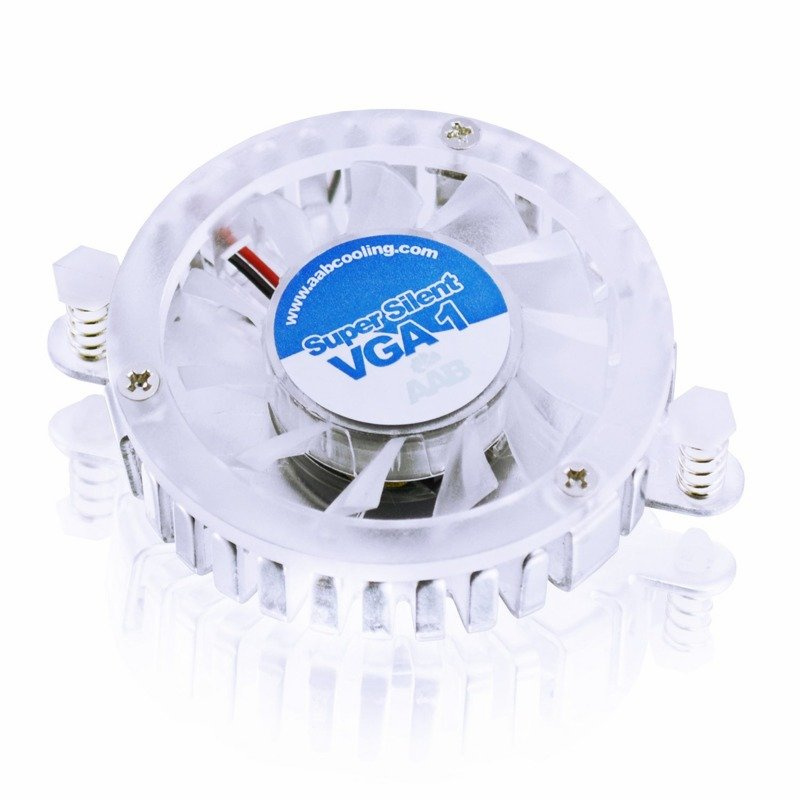

The AABCOOLING Super Silent VGA 1 is a fan suitable for graphics cards, whose requirements are much smaller.
- VGA Cards Cooling
- Mini 2 Pin - Female Plug
- PushPins Mounting
Main advantages:
- Very good value for money / price / quiet
- 2 years warranty
- Very quiet fan
- Good cooling
- Easy installation
Typical applications:
- Graphic cards with mounting holes of about 55mm size
- Compatibility: GeForce MX , GeForce 2 MX , GeForce 2 GTS , GeForce 3 Ti 200 , GeForce 3 Ti 300 , GeForce 3 Ti 500, GeForce 4 MX200 , GeForce 4 MX400 , GeForce 4 MX420 , GeForce 4 MX440 , GeForce 4 MX460 , GeForce 4 MX4000 , GeForce FX 5200 , GeForce FX 5600 , GeForce FX 5700LE , GeForce FX 5700 , GeForce 6200 PCIE , GeForce 6500 PCIE , GeForce 6600 PCIE , GeForce 7100 PCIE , GeForce 7300 PCIE , ATI RADEON 9000 , ATI RADEON 9000 PRO , ATI RADEON 9200, ATI RADEON 9250 , ATI RADEON 9500 , ATI RADEON 9500 PRO , ATI RADEON 9550 , ATI RADEON 9600 SE , ATI RADEON 9600 PRO, ATI RADEON 9600 XT , ATI RADEON 9700 , ATI RADEON 9700 PRO , ATI RADEON 9800 PRO , ATI RADEON 9800 XT , ATI RADEON 9800 SE
Before purchasing, please check the dimensions of the mounting holes carefully as they are the basis for compatibility assessment. Please compare the power plug as well.
If you do not start the fan, replace the cables in the fan power plug (red '+' with black '-‘).

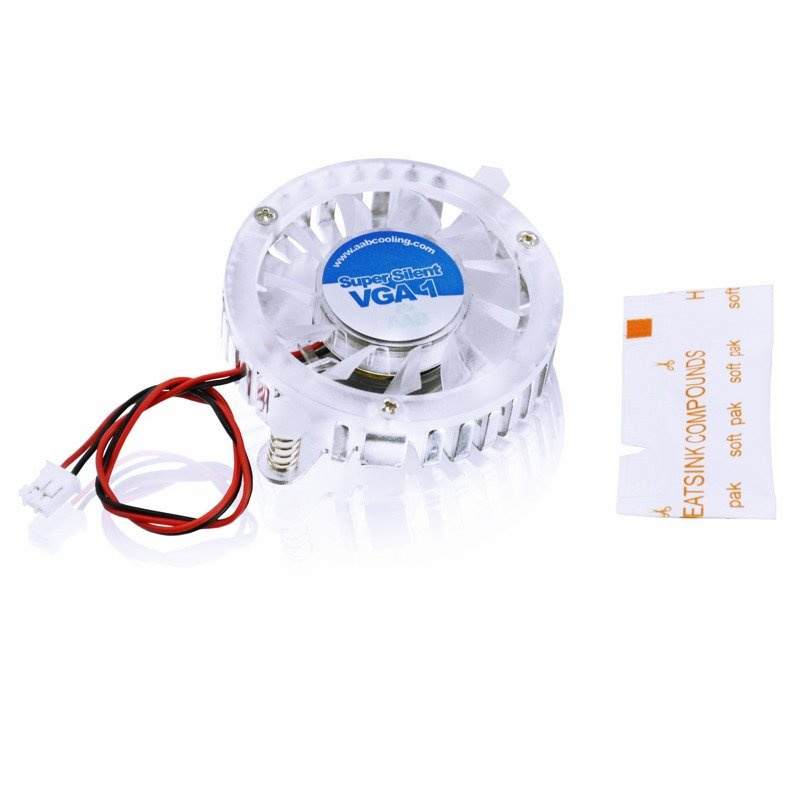

Included:
- 1 x AABCOOLING Super Silent VGA 1
- 1 x thermal conductive paste
- 1 x Package
